MG Series All-in-one Hybrid Power Systems

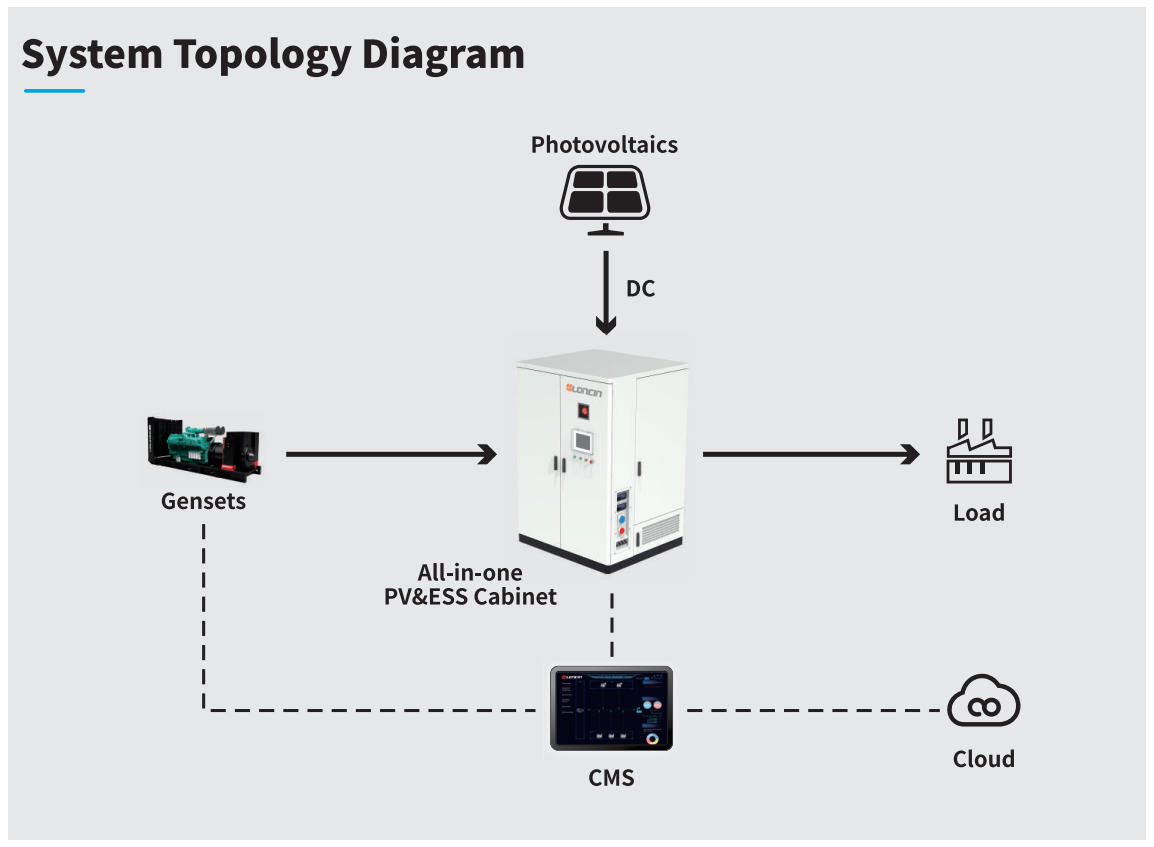

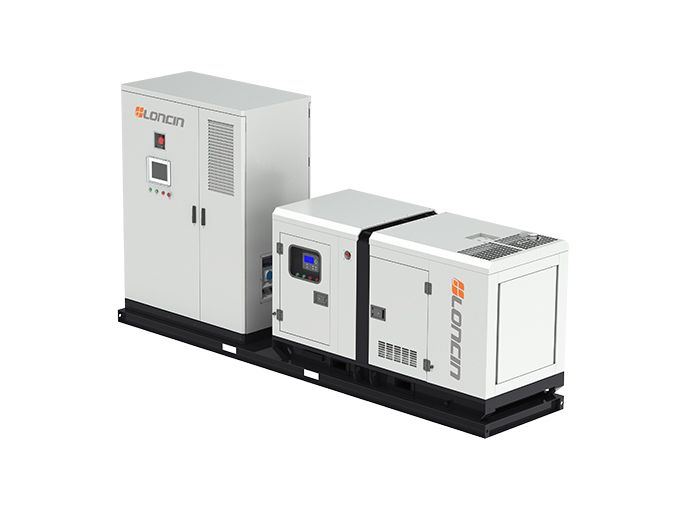

MG series is a highly integrated, multi-energy complementary, uninterrupted power supply small Micro-grid system developed by SAONON. The system integrates PV & ESS cabinet and a silent diesel genset in the shared chassis, which is easy to install and transport, and has strong scalability. It is paired with SAONON's self-developed CMS energy management system to monitor the operating conditions of the Micro-grid in real time, and realizes a variety of energy power distribution and management. It is applicable to multiple scenarios, such as primary power, load smoothing, peak shaving and valley filling, small island Micro-grids, farms, villas and capable of meeting needs of different users.
Typical Application Package
system | 30kW & 60kWh | 60kW & 120kWh | 100kW & 215kWh |
User load | 30kW | 60kW | 100kW |
Photovoltaic installed capacity | 34kW(56PCS) | 69kW(112PCS) | 111kW(180PCS) |
Battery energy storage capacity | 61.44kWh | 122.8kWh | 215kWh |
Silent diesel genset | 32kW | 64kW | 92kW |
CMS energy management system
| Standard configuration | Standard configuration | Standard configuration |
Rated output power of the system | 30kW | 60kW | 100kW |
Maximum system output power | 62kW | 124kW | 192kW |
Note: The photovoltaic option is TWMNH-66HS620, which can be changed according to actual needs.
Features
Efficient and Green
Featuring multiroute MPPT input, and supporting high-power photovoltaic assemblies;
Supporting multi-unit on-grid or off-grid operation, convenient for capacity expansion;
Intelligent power management, prioritizing the use of photovoltaic, wind energy and other new energy sources, and enabling diesel gensets to work at the best economic operating point.
Safe and Reliable
STS module as a standard configuration enables the system to switch between on-grid and off-grid no more than 20ms;
Optional ATS module, realizing automatic switching between utility power and diesel gensets, automatic complementary energy access to ensure continuous power supply of the system;

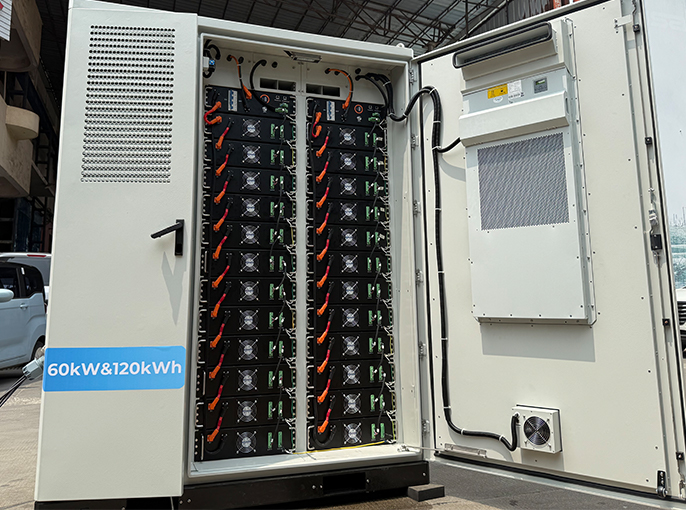

Dual fire protection at the levels of battery pack and battery compartment enables timely and accurate identification and elimination of fire danger;
Application of industry-level cooling air conditioners or liquid cooling/heating management systems maintains battery cells at the optimal temperature, extending service life of batteries.
Convenient Installation
The system is integrated on a shared chassis (optional), which facilitates transportation and installation;

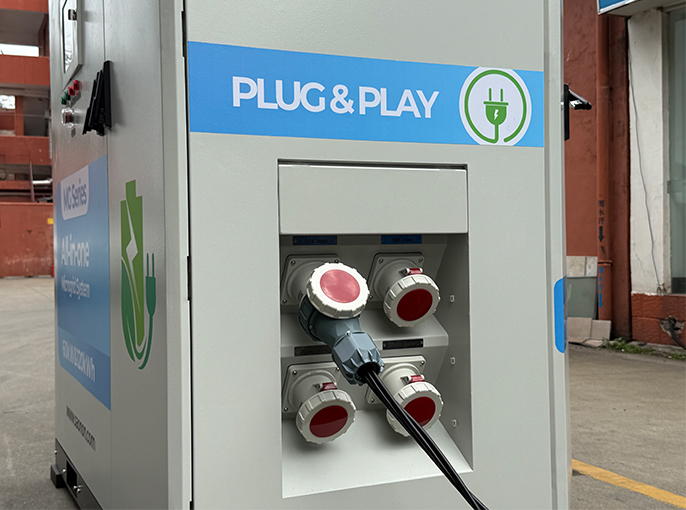

Reserve fast interfaces for loads, photovoltaic, diesel generators, etc., to realize fast network formation;
CMS energy management system has been preset since delivery, which is available the moment the system is turned on.
